GPS Vehicle Tracker - AVL900-2-2
 |
|

|
-
AVL-900-2 has the following functions and features:
¤ SMS and GPRS TCP/UDP Communication
¤ AGPS ( with GSM Base Station ID)
¤ Track on Demand
¤ Show Location Directly on Mobile Phone
¤ Track by Time Interval
¤ Track by Distance
¤ Listen-in (optional)
¤ Anti-Jammer (optional)
¤ GSM Blind Area Memory
¤ Internal Memory for Logging
¤ Inbuilt Motion Sensor for Power Saving
¤ SOS Panic Button
¤ Movement Alarm
¤ Geo-fencing Control
¤ Low Battery Alarm
¤ Speeding Alarm
¤ GPS Blind Area Alarm (in/out)
¤ Power-cut Alarm

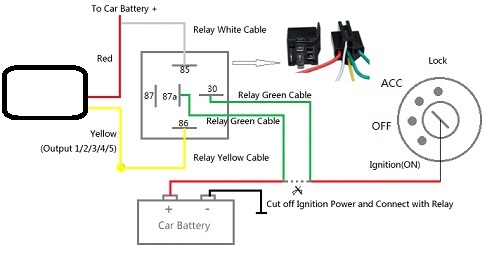

¤ Engine Cut (Stop Engine)
¤ I/O: 3 digital inputs , 1 outputs and 1 analog inputs of 10 bits resolution |
|
|

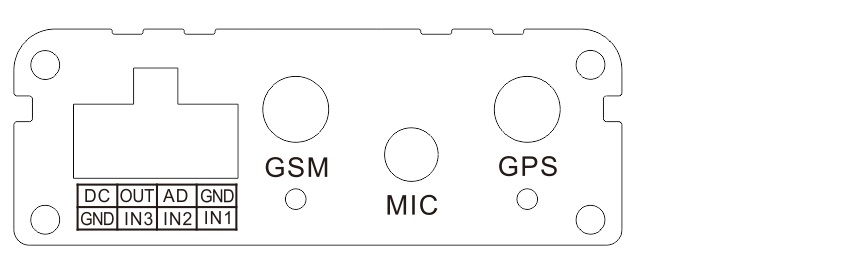

PIN |
Color |
Function |
Power |
Red |
DC In (power input). Input voltage: 10.6V~36V. 12V suggested |
GND |
Black |
Ground |
In |
White |

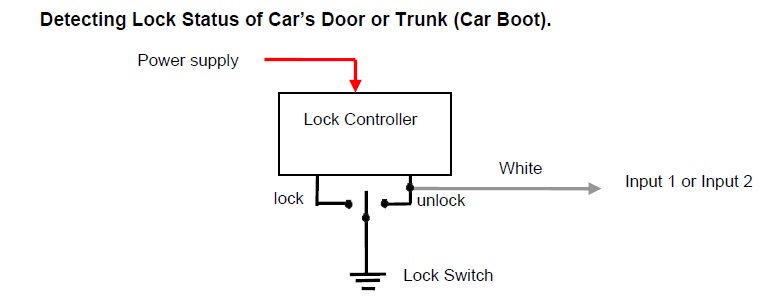

Digital Inputs. In1, In2 are negative triggering; In3 is positive triggering |
Out |
Yellow |
Outputs. Low voltage (0V) when effective and open drain when ineffective
Output open drain sink voltage (ineffective): 45V max. Output low voltage sink current (effective): 500mA max. |
AD |
Blue |
10 Bits Resolution Analog Inputs. Input voltage: 0~6V |
DC Characteristics of PINs |
PIN |
Inactive |
Active |
Maximum |
Input 1/2 |
Open drain or >1V |
0V(GND) |
45V |
Input 3 |
Open drain or 0V(GND) |
>3V |
45V |
Output 1 |
Open drain |
0V (GND) |
45V/500mA |
DC IN |
/ |
9-36V |
45V |
AD 1 |
/ |
0-6V |
45V |
Basic Specifications
Items |
Specifications |
Power Supply |
10.6V - 36V / 1.5A |
Backup Battery |
500mAh |
Normal power consumption |
55mA/h |
Dimension |
65 x 61 x 26mm |
Weight |
90g |
Work time |
30 hours in power-saving mode and 7.5 hours in normal mode |
Operating temperature |
-20° to 55° C |
Humidity |
5% to 95% Non-condensing |
Frequency |
UMTS/HSDPA: 900/2100MHz GSM/GPRS: 900/1800MHz |
GPS Module |
latest GPS SIRF-Star IV chipset |
GPS Sensitivity |
-163Db |
GPS Frequency |
L1, 1575.42 MHz |
C/A Code |
1.023 MHz chip rate |
Channels |
48 channel all-in-view tracking |
Position Accuracy |
10 meters, 2D RMS |
Velocity Accuracy |
0.1 m/s |
Time Accuracy |
1 us synchronized to GPS time |
Default datum |
WGS-84 |
Reacquisition |
0.1 sec., average |
Hot start |
1 sec., average |
Warm start |
35 sec., average |
Cold start |
35 sec., average |
Altitude Limit |
18,000 meters (60,000 feet) max |
Velocity Limit |
515 meters/second (1000 knots) max |
LED |
2 LED lights to show GPS/GSM status |
Flash Memory |
4MB |
Button |
One SOS Button |
Interface |
3 digital inputs (2 negative and 1 positive triggering)
1 analog inputs
1 outputs. |
|
